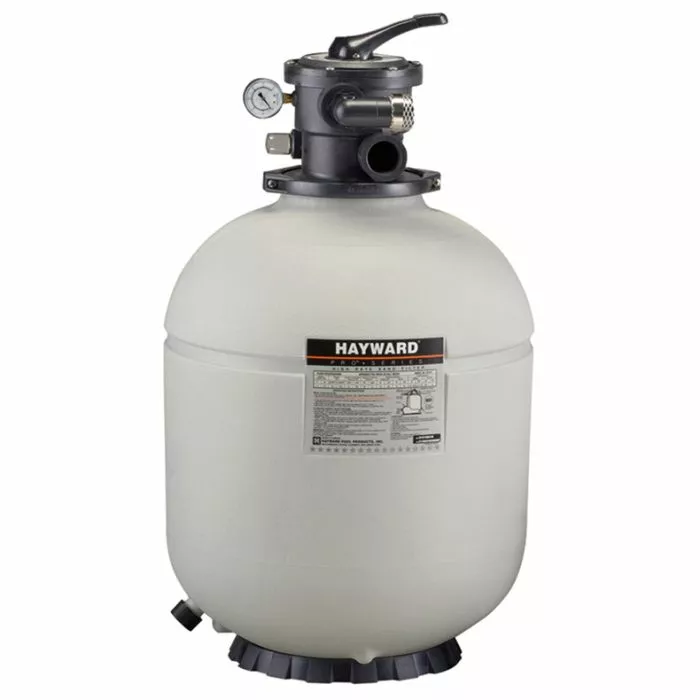

Superior filtration from the inside out.
Cost-effective and convenient, Hayward Pro Series Pool Sand Filters offer the ideal combination of energy efficiency and durability. Enjoy outstanding water clarify with the value promise that Hayward delivers on every time.
With the help of an integral top diffuser, unfiltered swimming pool water is distributed evenly throughout the entire sand bed in a cascading, umbrella-like pattern. This allows the greatest filtration possible from every square inch of sand. Then the self-cleaning under drain assembly, with its 360 slotted laterals, provides a fast, balanced flow of clear water back to the pool while allowing for more thorough back washing. Best of all, the Hayward Pro Series full-flow technology reduces your energy costs because the pool sand filter operates for shorter periods.
A seven-position valve puts you in control. The patented, multiport control valve developed by Hayward was designed with seven swimming pool filter positions: filter, backwash, rinse, waste, closed, recirculate, and winter. An easy-to-use lever-action handle lets you quickly dial any function.
Built for long-lasting convenience! You can easily access your Hayward Pro Series pool sand filter assembly for simple servicing via the unique folding ball joint in the laterals. A corrosion-proof housing protects the filter system from severe weather for years to come.
Order the Complete System and SAVE MONEY.
Complete pool sand filter system includes the Hayward Power-Flo LX Pump, 21 in. complete system includes the Hayward Power-Flo Matrix Pump. Both include modular system base and filter to pump connection kit. Standard three-prong grounded 6 foot cord connection.
Note: FILTER MEDIA NOT INCLUDED
For sand filtration tanks, use only pool grade AquaQuartz #20 silica sand #5451, ZeoSand #4429, or Aqualoon #7832.
Providing you with quality you can trust, the ProSeries high-rate sand filters incorporate the latest pool filter technology to keep your above ground pool operating at its very best. Constructed from durable, corrosion-resistant materials, these filters feature a strong, unitized tank design that delivers years of dependable performance with minimal maintenance.
Molded of rugged, colorfast reinforced thermoplastic, the tank is built to withstand the elements while maintaining long-lasting durability and appearance. ProSeries filters are known for their balance of performance, value, and reliability—setting a trusted standard in pool filtration.
Designed for efficient water flow and consistent filtration, these filters include precision-engineered internal components that help maximize performance while simplifying maintenance. Whether you're upgrading your system or building a complete setup, ProSeries offers a dependable solution for keeping your pool clean and clear.
For complete systems, ProSeries sand filters can be paired with your choice of compatible pumps to create a powerful, all-in-one filtration setup. These systems are designed to deliver exceptional durability and performance for a wide range of above ground pool applications.
Features
- Flange clamp design - Allows 360° rotation of the valve for easier, more flexible plumbing installation
- Integrated top diffuser - Evenly distributes water over the sand media bed for consistent filtration
- Full-size internal piping - Ensures smooth, free-flowing water for optimal performance
- Corrosion-proof tank - One-piece, unitized construction made from reinforced thermoplastic for all-weather durability
- Vari-Flo control valve - 6- or 7-position Hayward® valve with an easy-to-use lever handle for simple operation
- Built-in sight glass - Lets you easily monitor when the backwash cycle is complete
- Large sand/water drain - Allows for quick winterizing and convenient servicing
- Self-cleaning laterals - Precision-engineered umbrella-fold design provides balanced flow, efficient backwashing, and easy maintenance
Additional Information
System Options:
ProSeries sand filters are available as part of complete systems that include your choice of compatible pump, filter-to-pump hose kit, and base for a convenient all-in-one solution.
Filter Media Not Included:
For sand filtration tanks, use only:
* Pool-grade AquaQuartz #20 silica sand (#5451)
* ZeoSand (#4429)
* Aqualoon (#7832)
Shipping Note:
The 31" sand filter ships by truck (estimated 5-7 business days).
Technical Support:
For assistance, contact Hayward at 1-800-HAYWARD or visit [www.haywardpools.com](http://www.haywardpools.com)
