ADA compliance verified by Wyle Laboratories.

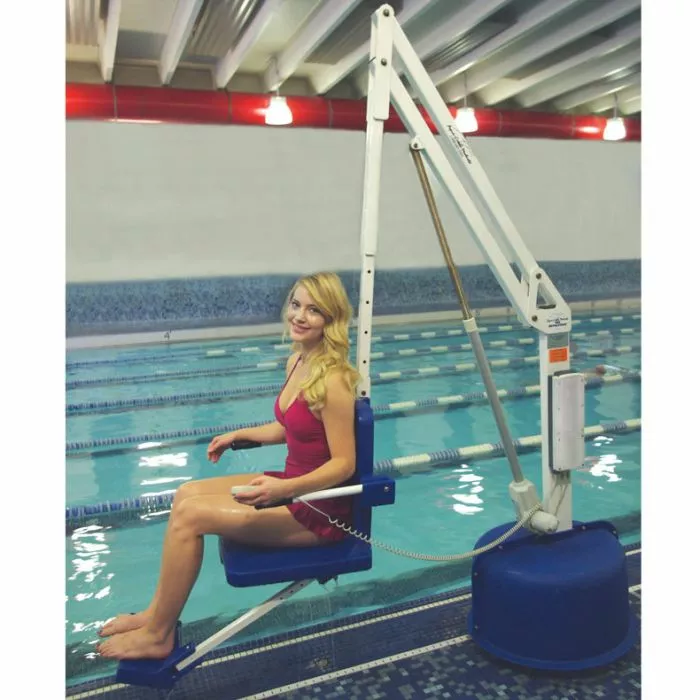

The innovative Revolution Lift is verified by an independent third party to be ADA compliant. This lift provides the ability to service multiple bodies of water as well as in-ground pools and spas and above ground spas. Multiple options makes this lift very versatile, adaptable to most pools and also accommodates heavier patrons. Constructed of all stainless steel materials and protected with a white epoxy powder coated finish, The Revolution Lift is the only lift your facility needs. Features 360 degree powered rotation in either direction.
Features:
- 500 lb weight capacity
- Independently 3rd party verified to meet ADA standards
- Services multiple pools and spas
- Rechargeable 24-Volt battery with wall mount charger
- Clears 30 inch high walls, up to 10 inch thick
- 360 degree powered rotation in either direction
- Dual flip-up arms
- Adjustable lap belt
- Removable and adjustable foot rest
- Set back ranges from 12-40 inches
- Durable epoxy powder coating
- All stainless steel construction
- Submergible 4-Button Remote
- Limited lifetime structural warranty
- Five year pro-rated electronics warranty
Options/Parts/Accessories:
- If an accessory is not listed for online ordering, call one of our pool specialist for details 1-800-323-5930
- Optional Cover Protect your lift from the elements. Shark gray color.
- Optional Headrest Provides extra head support.
- Optional Chest Strap Provides extra support for the upper body while using the lift.
- Optional Transport Cart Transport your lift easily to storage or another location.
- Upgrade Package Includes extra battery, headrest, chest strap and cover.
- Optional Seat Cushion 5 inch thick cushion provides extra comfort when using your lift.
- Optional Pull Out Leg Rest Replace your standard footrest with this leg rest. Great option for when lift is used in spas.
- Optional Cycle Attachment Easily converts your lift into any aqua bike for exercise or rehab.
- Anchor Kit, Revolution In-ground concrete anchor with cover plate.
- Sling Seat Option Option for Revolution Lift that includes hanger bar, chains and 50 in. x 30 in. super-duty sling.
- Replacement Chain Set Additional chain set to be used with sling seat option.
- Replacement Hanger Bar Replacement hanger bar to be used with the sling seat option.
- Additional Super-Duty Sling Additional 50 in. x 30 in. super-duty sling for use with sling seat option. Sling bars included.
- Wheelchair Option Option for Revolution Lift that includes attachment arm and 22 in. non-collapsible, stainless steel wheelchair.
- 22 in. Non-Collapsible SS Wheelchair Additional stainless steel wheelchair to be used with wheelchair attachment option.
- Gurney Option Option for Revolution Lift that includes attachment and padded gurney.
- Spine Board Option Option for Revolution Lift that includes attachment arm and spine board. Spine board dimensions: 18 in. x 72.5 in. x 2.5 in. Head immobilizer sold separately.
- Head Immobilizer Thick foam support blocks, base plate, head and chin straps. To be used with spine board.
- Replacement Actuator Motor
- Replacement 4-Button Remote Submergible push button remote handset.
- Replacement 24-Volt DC Battery
- Replacement Battery Charger Charges battery in approximately 4 hours time. Easy plug-in system plugs into any outlet.
- Replacement Control Box Controls operation of lift. Emergency lifting function. Acoustic battery alarm at approximately 50% battery capacity.
